Alpha Line

for L-Acoustics

Applications

indoor stand for
L-Acoustics loudspeakers

Height Options

permitted total height
400 cm

Adapter Heads

adapter heads for L-Acoustics
Syva, Kiva II, Kara and
ARCS (Wide / Focus)

Capacity

max. recommended
load 180 kg

Baseplates

BP1000 and BP800
with decentralized mount

L-Acoustics Syva

Color: RAL 7035
Weight: 9 kg
The L-Acoustics Syva colinear system is fixed to the L-Acoustics Syva wall mount using the Excellent Line adapter head for the L-Acoustics Syva.
The vertical tilt can be set to 0°, − 2°, − 4°, − 6°, − 8° or − 10°. Horizontal rotation is achieved through the L-Acoustics Syva wall mount.

L-Acoustics Kiva II

Color: RAL 7035
Weight: 22 kg
Depending on the required application, a fitting for the L-Acoustics Kiva II or Kara can be attached to the adapter head. The maximum load is 180 kg.
The lowest linear array element can be tilted by up to 15° in steps of 1°.

L-Acoustics Kara

Color: RAL 9005
Weight: 22 kg
Depending on the required application, a fitting for the L-Acoustics Kiva II or Kara can be attached to the adapter head. The maximum load is 180 kg.
The lowest linear array element can be tilted by up to 15° in steps of 1°.

L-Acoustics ARCS

Color: RAL 9005
Weight: 46 kg

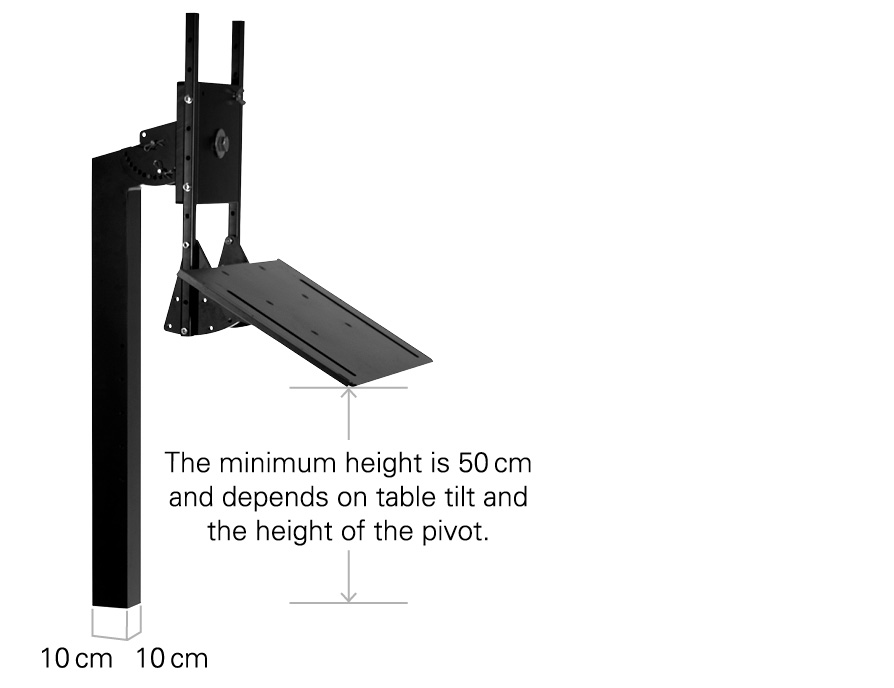

The L-Acoustics ARCS stand can hold up to four L-Acoustics ARCS Wide, L-Acoustics ARCS Focus, or a combination of the two, when used vertically. When deployed vertically, the L-Acoustics ARCS mounting table can be titled downwards at angles of 15° to 30°, 45° or 60° from the original angle.
The tilting mechanism can be used to rotate the vertical array, made up of a maximum of four L-Acoustics ARCS Wide, three L-Acoustics ARCS Focus, or a mixed combination of three units, into a horizontal position. The second titling mechanism can be used to rotate the horizontal array from − 30° to + 30°.

Baseplate BP1000

Color: RAL 9005
Weight: 61 kg

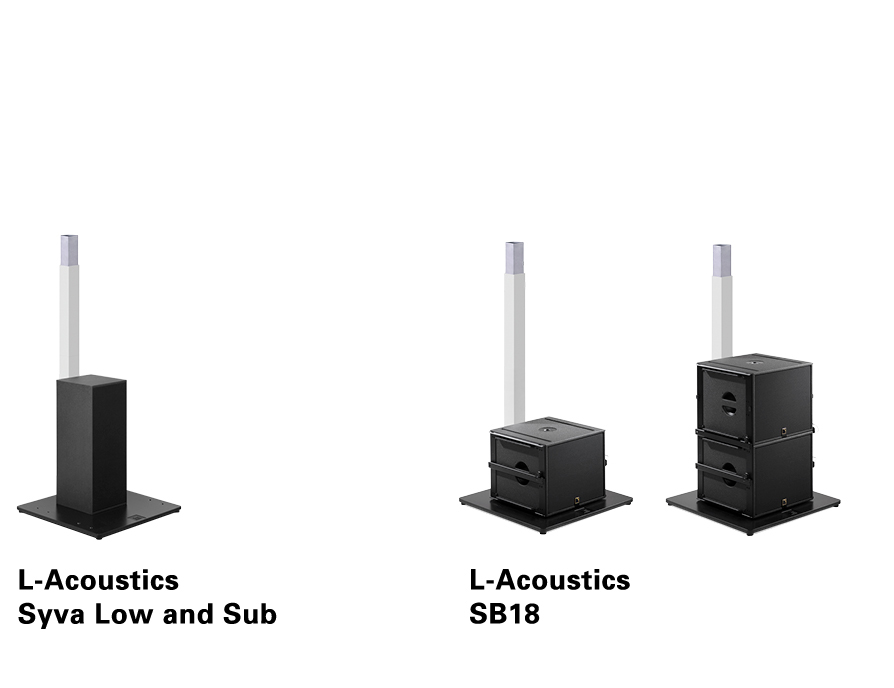

The BP1000 baseplate can support L-Acoustics SB15 and SB18 subwoofers and has eight additional drill holes for fixed mounting or supporting structures.

Baseplate BP800

Color: RAL 9005
Weight: 35 kg
The BP800 baseplate can support L-Acoustics Syva Low and Sub subwoofers and has eight additional drill holes for fixed mounting or mounting to supporting structures.

Extensions

Color: RAL 7035, RAL 9005
Weight: 6.4 kg | 5.4 kg | 4.4 kg

Height Options
